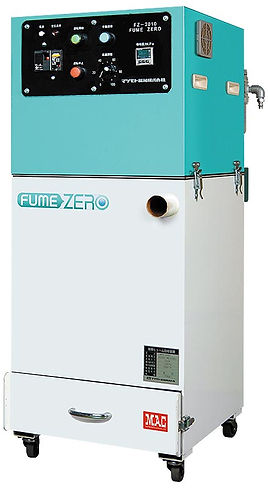

Welding Fume Extractor

Pursuing more efficiency of Fume Extraction!!

​

Supporting to improve operating environment!!

​

Ultimate Cost-performance!!

​

High Static Pressure, Long Life & Local Extraction!!

​

​

● Centrifugal separation mechanism!!

   Spatter & Fume are separated by rotational flow,and it avoid spatter invation the filter.

​

​

​

​

​

​

​

​

​

● Air Shock filter cleaning function!!

   Compressed air is blew automatically to two filters alternately for cleaning.

​

​

​

​

​

​

​

​

​

​

​

​● Continuous Operation is available!!

   During fume extraction, filter can be cleaned up, so that continuous operation is available.

   It is the best suitable for Robot Welding or Automatic Welding.

​

● High performance Cartridge type Twin Filter!!

   Two filters are included as standard accessories. Filter is coated by PTFE coating & also

   it has antistatic treatment.

​

​

​

​

​

​

​

​

​

● Extraction Pressue Gauge is standard accesories!!

   Filter condition can be confirm easily.

​

● Interlocking with robot is available!!

   External interlocking 4P metal connector is installed on the back of the main unit,

   so interlocking with Robot or Automatic welding system is available.

​

​● Easy Fume disposal!!

   Drawing type fume tray can take out easily to scap extracted fume.

​

​

​

​

​

​

​

​

● 2 points extraction (Option)!!

   Branch Unit (optional item) can extract 2 points at the same time.

​

● Original inverter type variable flow rate adjusting function!!

   Blower rotation is variable. Accurate extraction flow volume can be obtained by

   stepless adjustment.

​

​

​

​

​

​

■ Example by Welding Robot (Suction Nozzle: RAS-1T)

​

​

​

​

​

​

​

​

『Fume Zero mini』 has equivalent extraction capacity as

『Fume Zero』, but its function is selected carefully, so the Low Price was achieved!

​

​

​

​

● Space Saving!!

Installation Space is smaller about one third than　Fume Zero!

​

● Light Weight

Weight for Mian Unit is about 20 kgs.

​

● Easy Operation

ON/OFF of main power switch only!

​

● Adopting the High Performance Filter for Ultrafine particle

Filtration Filter is Anti-statics laminated PTFE.

● Easy Maintenance

Snap lock third division structure!

Easy Disassembling for maintenance!!

● High Performance Blower Motor

Max. Extraction Pressure is -25.5kPa.

High & quiet pressure.

Extraction pressure is hard to go down when using long duct.

​

​

​

​

​

​

​

​

Example for Extraction
