Pipe Notching Machine
MSD-60
Pipe Notching Machine 『 R CUT MSD-60 』 (Pipe Dia.: 12.7mm ~ 60.5mm) CVT adopted.
■ Features
● CVT (Continuously Variable Transmission) is adopted. One Hand Gear shifting is OK.
● Suitable rotation speed for cutter speed can be obtained.
● Wide range of rotation frequency.
● Rotation table for smooth angle notching.
● Clamp vise has retightening mechanism.
It can hold the work piece firmly.
● Excellent processing ability.
(Max. Dia. 60.5mm)
● The notching angle can be made larger.
● The entire blade can be used by transverse sliding mechanism.
Various Notching Processing.
Notching 60° Notching Square Pipe Flat Bar
MSD-60 Angle Notching (*This is for image only.)
■ Optional items for 『 R CUT 』
■ Features
● In case of both end notching processing, easy centering for both left & right side.
● User's own pipe is available for Notching Attachment. Easy Setting.
● Speedy & Precision processing can be performed easily.
Both Ends Notching Jig
* Example of Use
* Size 1M only.

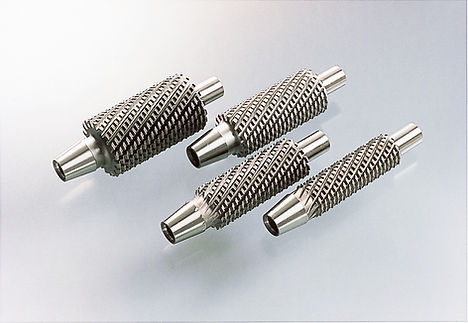

Dedicated Blade for R CUT 『 MHG Mill Cutter 』
■ Features
● Due to Special shape blade, easy notching for difficult-to-cut material or Stainless Steel.
● Cobalt high speed steel is used for MHG Mill Cutter, so its durability & life time is 3 times more than conventional blade.
● MHG Mill Cutter can notch the pipe 3 times faster than conventional blade, so its work efficiency is improved.
● MHG Mill Cutter has less biting pipe defects than conventional blade, also MHG Mill Cutter has few chip or burr on its blade.
● MHG Mill Cutter can be used at high speed rotation, so it can notch this plate.
● The Diameter of MHG Mill Cutter do not change if it is resharpened.
■ Cutter for Pipe Notching
